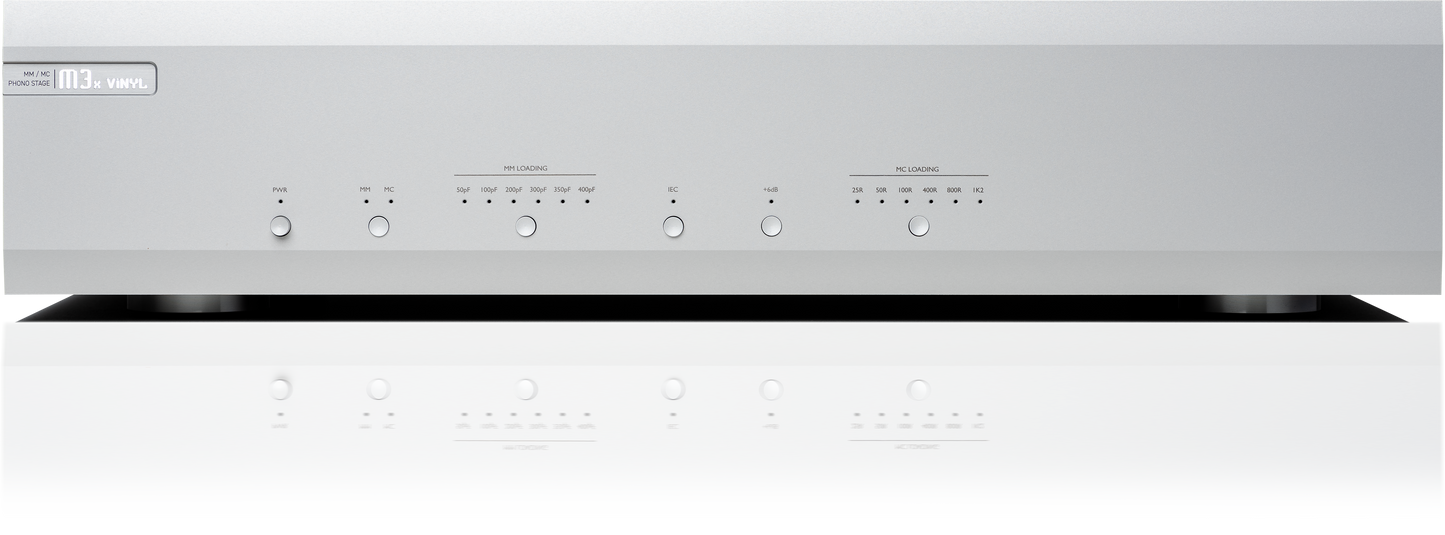

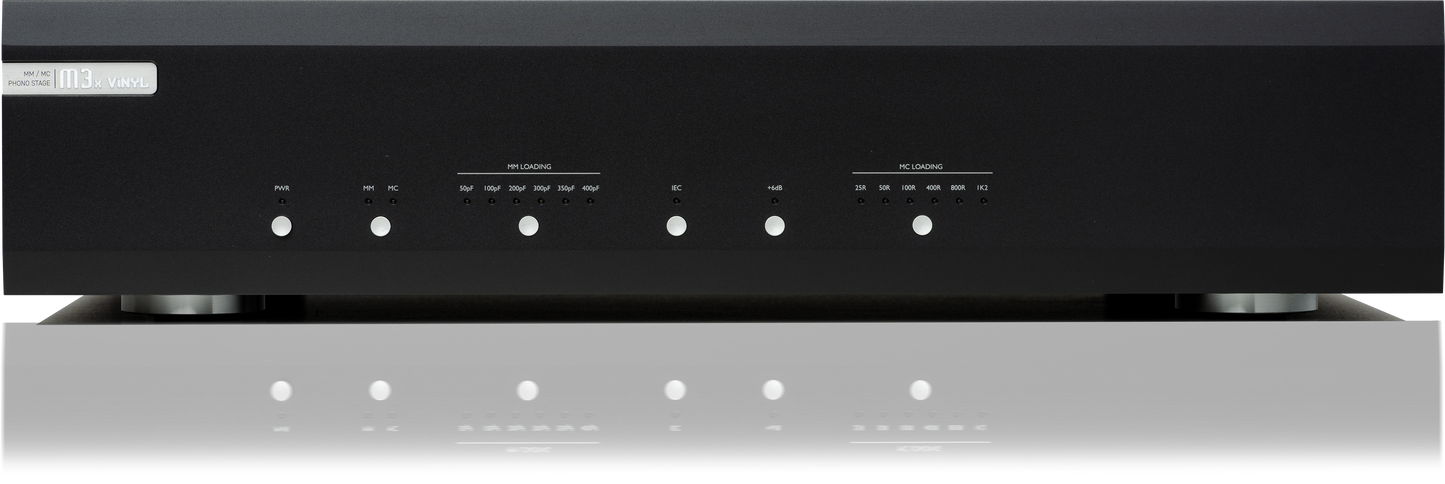

MUSICAL FIDELITY M3X VINYL

Description

The M3x ViNYL is a phono preamplifier, designed to be without any practical limitations. Connectivity is direct. You have an entrance and an exit. None of them can be overloaded at the input or limited in the output drive capacity. Can be set for MM or MC and accurate charging. It offers superior technical and sound performance like the M6x ViNYL, but at a lower entry level as the embodiment of the true spirit of high-end sound.

M3X VINYL - SPECIFICATIONS
MM INPUT
Frequency response: RIAA or RIAA/IEC ±0.2dB
Input sensitivity: 5mV in for 500mV out (at 1 kHz)
Input impedance: 47KΩ
Input capacitance: 50-400pF selectable
Gain: 40 or 46dB with +6dB function
THD+N: <0.028%
Signal to noise ratio: 95dB
Crosstalk: better than 100dB
MC INPUT
Frequency response: RIAA or RIAA/IEC ±0.3dB
Input sensitivity: 500μV in for 500mV out (at 1 kHz)
Input impedance: 25Ω to 1.2KΩ selectable
Gain: 60 or 66dB with +6dB function
THD+N: <0.28%
Signal to noise ratio: 80dB
Crosstalk: better than 90dB

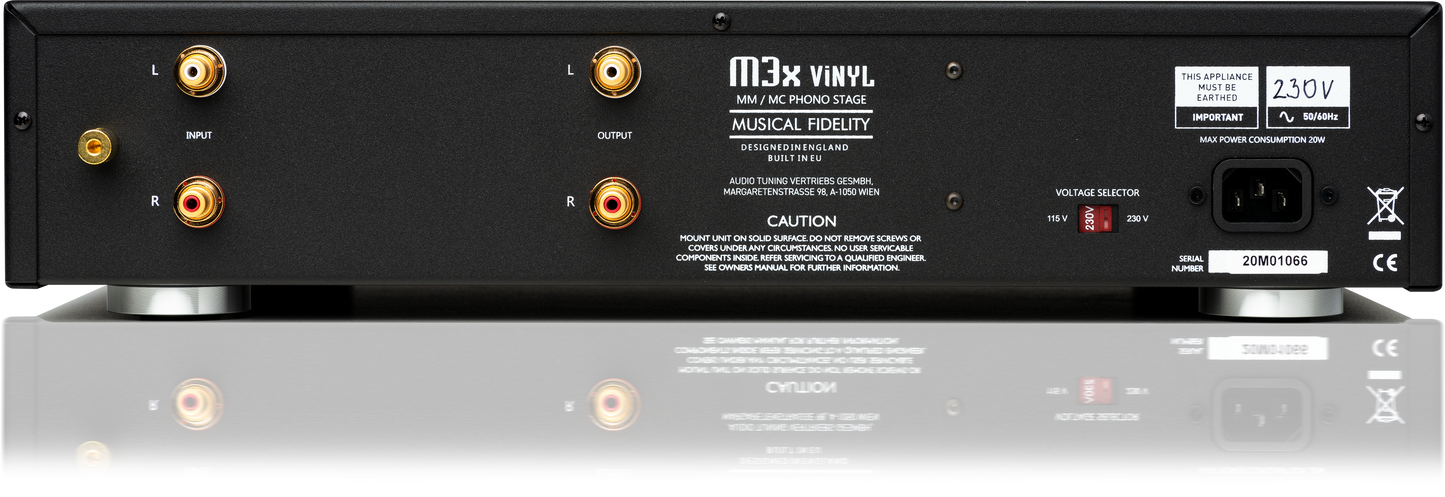

OUTPUT
1 pair RCA: left and right 500mV nom 10V max
INPUT
1 pair RCA
POWER REQUIREMENT
Mains voltages: 230V/115V; AC 50/60Hz
Consumption: 20 Watts maximum. 0W in standby)
WEIGHT AND DIMENSIONS
Unit only, unboxed: 6.59 kg
In shipping carton & inc. accessories: 10.15 kg
W x H(incl. feet) x D(incl. terminals): 440 x 105 x 390mm
STANDARD ACCESSORIES
Mains lead: 10 Amp IEC
